General specifications |
Speaker type | Powered subwoofer with a line array speaker |
Frequency range (-10dB) | 37 Hz - 20 kHz |
Coverage area | H170ﾟ x V30ﾟ |
Crossover | 240 Hz |
Maximum output level (1m; on axis) | 125 dB SPL |
Components | LF | Powered subwoofer: 12” (30 cm) Cone |
HF | Line array speaker: 1.5” (3.8 cm) Cone x 10 |
Amplifier class | Class-D |
Power rating | Dynamic | 1100 W |
Power consumption | 25 W (Idle), 91 W (1/8 power) |
Power requirements | Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz |
Processors | MODE (SPEECH/MUSIC/CLUB) |
I/O connectors | INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1 |
Handle | Top of powered subwoofer x1 |
Dimensions (W x H x D) | System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each) |
Weight | System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each) |
Accessories | Power cord x1, Cover x1 |
Options | Yamaha DL-SP1K (Dedicated dolly) |

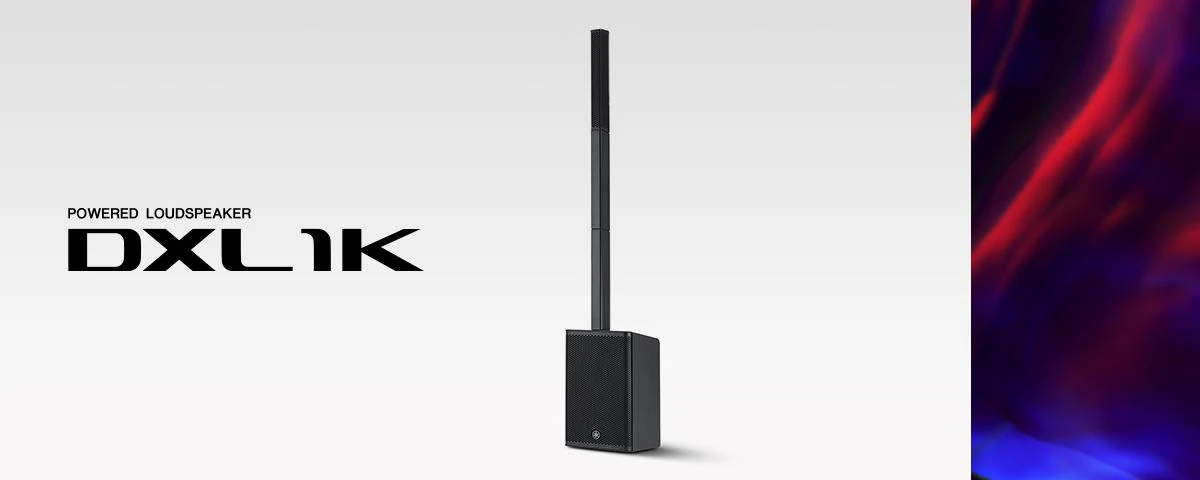

DXL1K
General specifications
Speaker type
Powered subwoofer with a line array speaker
Frequency range (-10dB)
37 Hz - 20 kHz
Coverage area
H170ﾟ x V30ﾟ
Crossover
240 Hz
Maximum output level (1m; on axis)
125 dB SPL
Components
LF
Powered subwoofer: 12” (30 cm) Cone
HF
Line array speaker: 1.5” (3.8 cm) Cone x 10
Amplifier class
Class-D
Power rating
Dynamic
1100 W
Power consumption
25 W (Idle), 91 W (1/8 power)
Power requirements
Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
Processors
MODE (SPEECH/MUSIC/CLUB)
I/O connectors
INPUT1: Combo x1 (mic/line), INPUT2: Combo x1 (line), LINK IN: XLR x1, LINK OUT: XLR x1
Handle
Top of powered subwoofer x1
Dimensions (W x H x D)
System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
Weight
System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
Accessories
Power cord x1, Cover x1
Options
Yamaha DL-SP1K (Dedicated dolly)
