General specifications |
Speaker type | 15" 2-way, Bi-amp powered speaker, Bass-reflex type | 12" 2-way, Bi-amp powered speaker, Bass-reflex type | 10" 2-way, Bi-amp powered speaker, Bass-reflex type | 8" 2-way, Bi-amp powered speaker, Bass-reflex type |
Frequency range (-10dB) | 49Hz - 20kHz | 52Hz - 20kHz | 56Hz - 20kHz | 57Hz - 20kHz |
Nominal coverage | H | 90° | 90° | 90° | 90° |
V | 60° | 60° | 60° | 60° |
Components | LF | Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite | Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite | Diameter:10" cone, Voice Coil:2", Magnet:Ferrite | Diameter:8" cone, Voice Coil:2", Magnet:Ferrite |
HF | Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium | Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium | Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium | Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium |
Crossover | FIR-X tuning™ (linear phase FIR filter) | FIR-X tuning™ (linear phase FIR filter) | FIR-X tuning™ (linear phase FIR filter) | FIR-X tuning™ (linear phase FIR filter) |
Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) |
Maximum output level (1m; on axis) | 134dB SPL | 134dB SPL | 132dB SPL | 130dB SPL |
I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1 | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1 |
Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | D-CONTOUR: FOH/MAIN, MONITOR, OFF | D-CONTOUR: FOH/MAIN, MONITOR, OFF | D-CONTOUR :FOH / MAIN, MONITOR, OFF |
Power requirements | 100V - 240V, 50Hz/60Hz | 100V - 240V, 50Hz/60 Hz | 100V - 240V, 50Hz/60Hz | 100V - 240V, 50Hz/60Hz |
Power consumption | 110W | 110W | 90W | 90W |
Flying and mounting hardware | Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) | Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) |
Pole socket | 35mm with 2-way features (0 or 7 degrees) | 35mm with 2-way features (0 or 7 degrees) | 35mm with 2-way features (0 or 7 degrees) | 35mm with 2-way features (0 or 7 degrees) |
Dimensions | W | 445mm (17 4/8") | 362mm (14 2/8") | 305mm (12") | 280mm (11") |
H | 700mm (27 4/8") | 601mm (23 5/8") | 502mm (19 6/8") | 458mm (18") |
D | 380mm (15") | 350mm (13 6/8") | 310mm (12 2/8") | 280mm (11") |
Net weight | 21.8kg (48.1lbs) | 18.6kg (41.0lbs) | 13.9kg (30.6lbs) | 12.8kg (28.2lbs) |
Accessories | UB-DXR15 (U-bracket) | UB-DXR12 (U-bracket) | UB-DXR10 (U-bracket) | UB-DXR8 (U-bracket) |
Others | Material: ABS (Matte Finish, Black) | Material: ABS (Matte Finish, Black) | Material: ABS (Matte Finish, Black) | Material: ABS (Matte Finish, Black) |

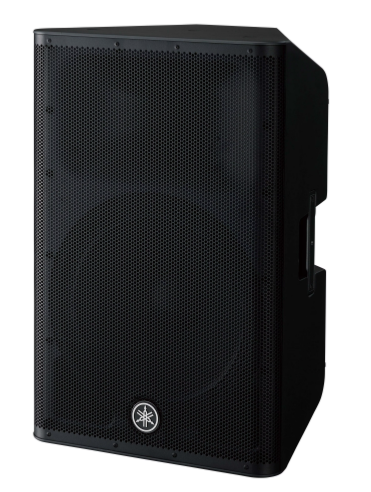

DXR mkII Series
DXR15mkII
DXR12mkII
DXR10mkII
DXR8mkII
General specifications
Speaker type
15" 2-way, Bi-amp powered speaker, Bass-reflex type
12" 2-way, Bi-amp powered speaker, Bass-reflex type
10" 2-way, Bi-amp powered speaker, Bass-reflex type
8" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)
49Hz - 20kHz
52Hz - 20kHz
56Hz - 20kHz
57Hz - 20kHz
Nominal coverage
H
90°
90°
90°
90°
V
60°
60°
60°
60°
Components
LF
Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite
Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
Diameter:8" cone, Voice Coil:2", Magnet:Ferrite
HF
Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium
Crossover
FIR-X tuning™ (linear phase FIR filter)
FIR-X tuning™ (linear phase FIR filter)
FIR-X tuning™ (linear phase FIR filter)
FIR-X tuning™ (linear phase FIR filter)
Output power
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis)
134dB SPL
134dB SPL
132dB SPL
130dB SPL
I/O connectors
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
D-CONTOUR: FOH/MAIN, MONITOR, OFF
D-CONTOUR: FOH/MAIN, MONITOR, OFF
D-CONTOUR :FOH / MAIN, MONITOR, OFF
Power requirements
100V - 240V, 50Hz/60Hz
100V - 240V, 50Hz/60 Hz
100V - 240V, 50Hz/60Hz
100V - 240V, 50Hz/60Hz
Power consumption
110W
110W
90W
90W
Flying and mounting hardware
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket
35mm with 2-way features (0 or 7 degrees)
35mm with 2-way features (0 or 7 degrees)
35mm with 2-way features (0 or 7 degrees)
35mm with 2-way features (0 or 7 degrees)
Dimensions
W
445mm (17 4/8")
362mm (14 2/8")
305mm (12")
280mm (11")
H
700mm (27 4/8")
601mm (23 5/8")
502mm (19 6/8")
458mm (18")
D
380mm (15")
350mm (13 6/8")
310mm (12 2/8")
280mm (11")
Net weight
21.8kg (48.1lbs)
18.6kg (41.0lbs)
13.9kg (30.6lbs)
12.8kg (28.2lbs)
Accessories
UB-DXR15 (U-bracket)
UB-DXR12 (U-bracket)
UB-DXR10 (U-bracket)
UB-DXR8 (U-bracket)
Others
Material: ABS (Matte Finish, Black)
Material: ABS (Matte Finish, Black)
Material: ABS (Matte Finish, Black)
Material: ABS (Matte Finish, Black)
DXR Serie
DXR15
DXR12
DXR10
DXR8
General specifications
Speaker type
15" 2-way, Bi-amp powered speaker, Bass-reflex type
12" 2-way, Bi-amp powered speaker, Bass-reflex type
10" 2-way, Bi-amp powered speaker, Bass-reflex type
8" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)
49Hz - 20kHz
52Hz - 20kHz
56Hz - 20kHz
57Hz - 20kHz
Nominal coverage
H
90°
90°
90°
90°
V
60°
60°
60°
60°
Components
LF
Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite
Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
Diameter:8" cone, Voice Coil:2", Magnet:Ferrite
HF
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Diaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
Crossover
FIR-X tuning™ (linear phase FIR filter)
FIR-X tuning™ (linear phase FIR filter)
FIR-X tuning™ (linear phase FIR filter)
FIR-X tuning™ (linear phase FIR filter)
Output power
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis)
133dB SPL
132dB SPL
131dB SPL
129dB SPL
I/O connectors
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
D-CONTOUR: FOH/MAIN, MONITOR, OFF
D-CONTOUR: FOH/MAIN, MONITOR, OFF
D-CONTOUR :FOH / MAIN, MONITOR, OFF
Power requirements
100V - 240V, 50Hz/60Hz
100V - 240V, 50Hz/60 Hz
100V - 240V, 50Hz/60Hz
100V - 240V, 50Hz/60Hz
Power consumption
110W
110W
90W
90W
Flying and mounting hardware
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket
35mm with 2-way features (0 or 7 degrees)
35mm with 2-way features (0 or 7 degrees)
35mm with 2-way features (0 or 7 degrees)
35mm with 2-way features (0 or 7 degrees)
Dimensions
W
445mm (17 4/8")
362mm (14 2/8")
305mm (12")
280mm (11")
H
700mm (27 4/8")
601mm (23 5/8")
502mm (19 6/8")
458mm (18")
D
380mm (15")
350mm (13 6/8")
310mm (12 2/8")
280mm (11")
Net weight
22.5kg (49.6lbs)
19.3kg (42.5lbs)
14.6kg (32.2lbs)
13.5kg (29.8lbs)
Accessories
UB-DXR15 (U-bracket)
UB-DXR12 (U-bracket)
UB-DXR10 (U-bracket)
UB-DXR8 (U-bracket)
Others
Material: ABS (Matte Finish, Black)
Material: ABS (Matte Finish, Black)
Material: ABS (Matte Finish, Black)
Material: ABS (Matte Finish, Black)
